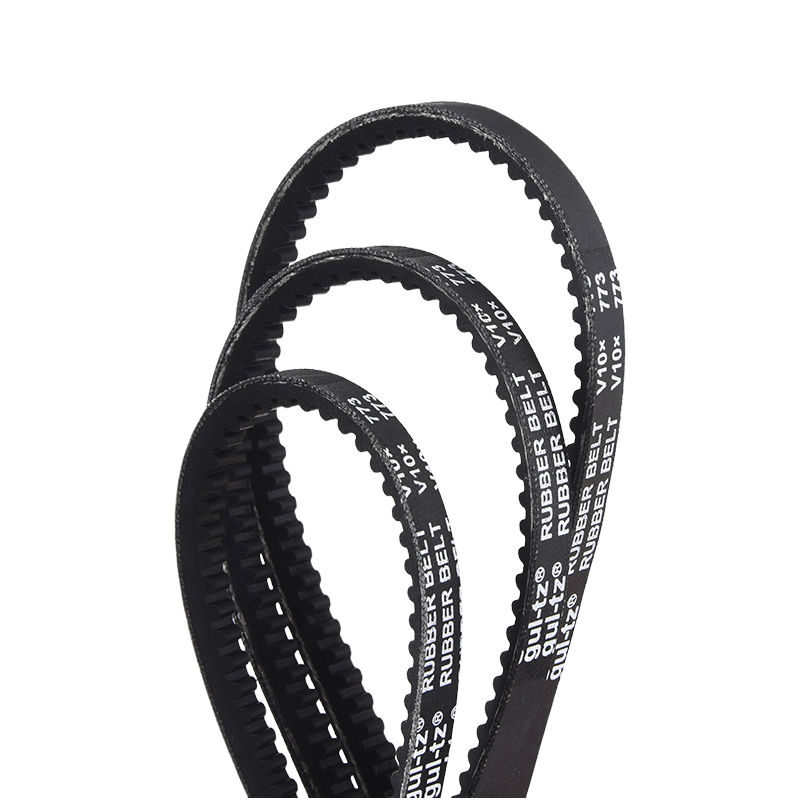

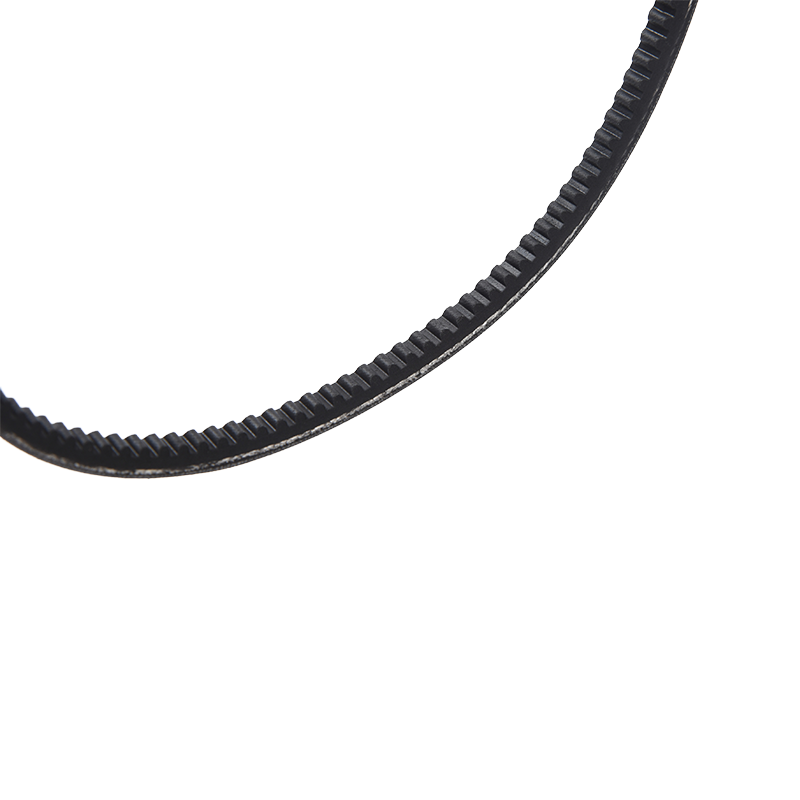

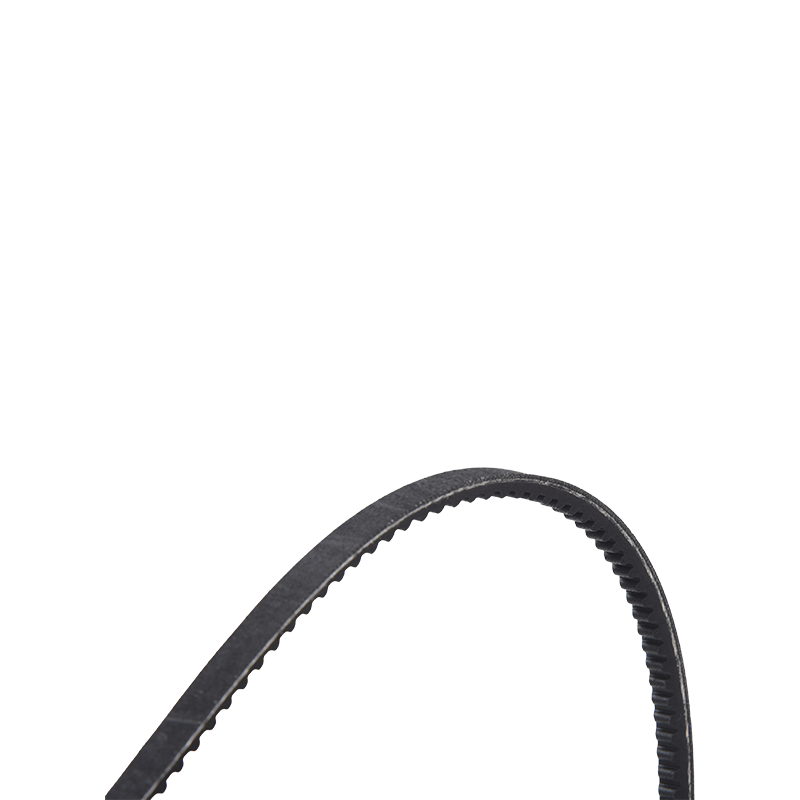

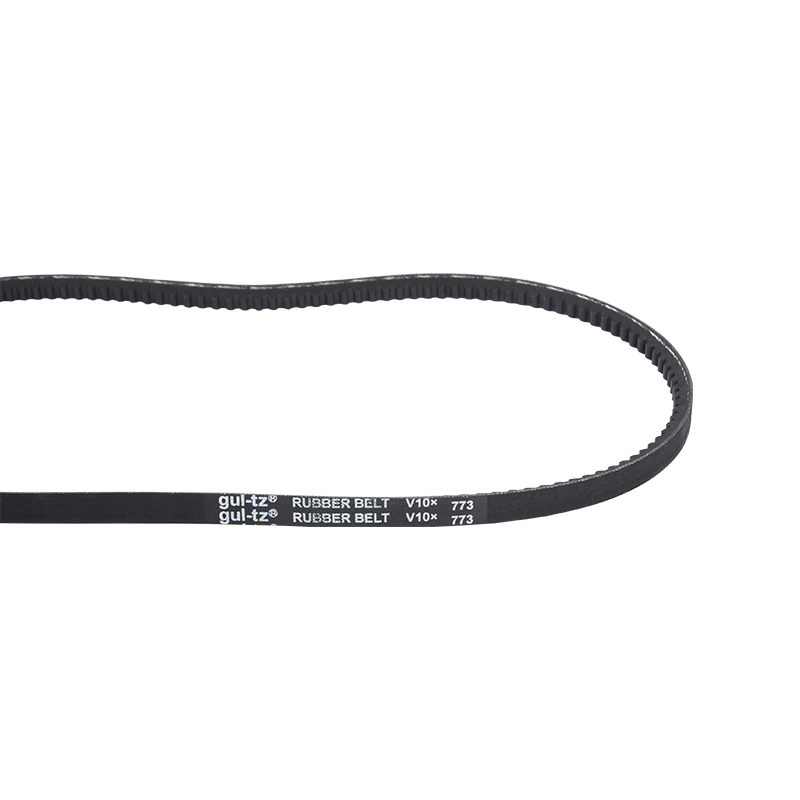

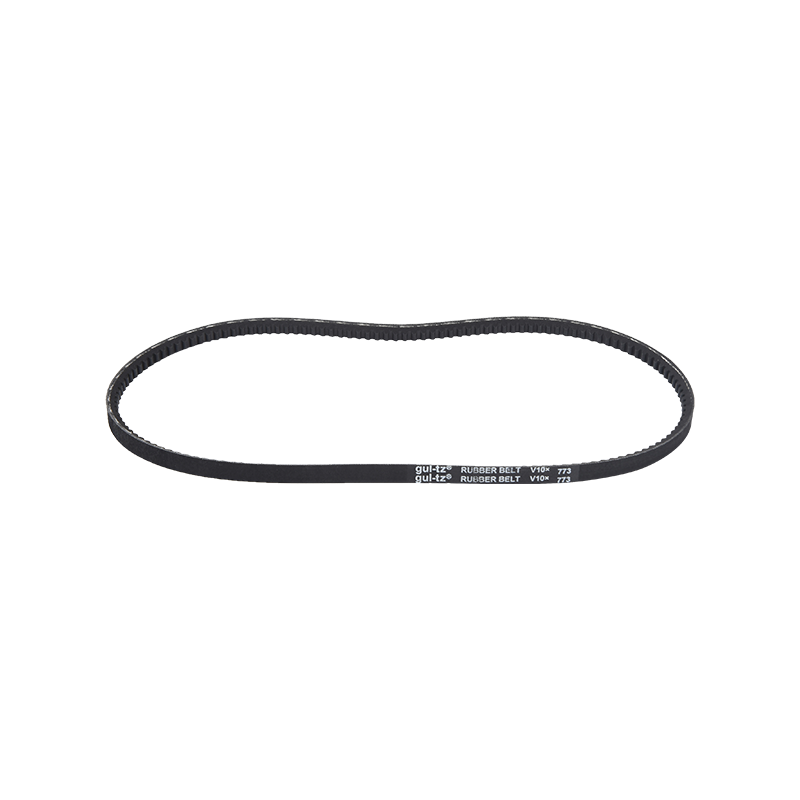

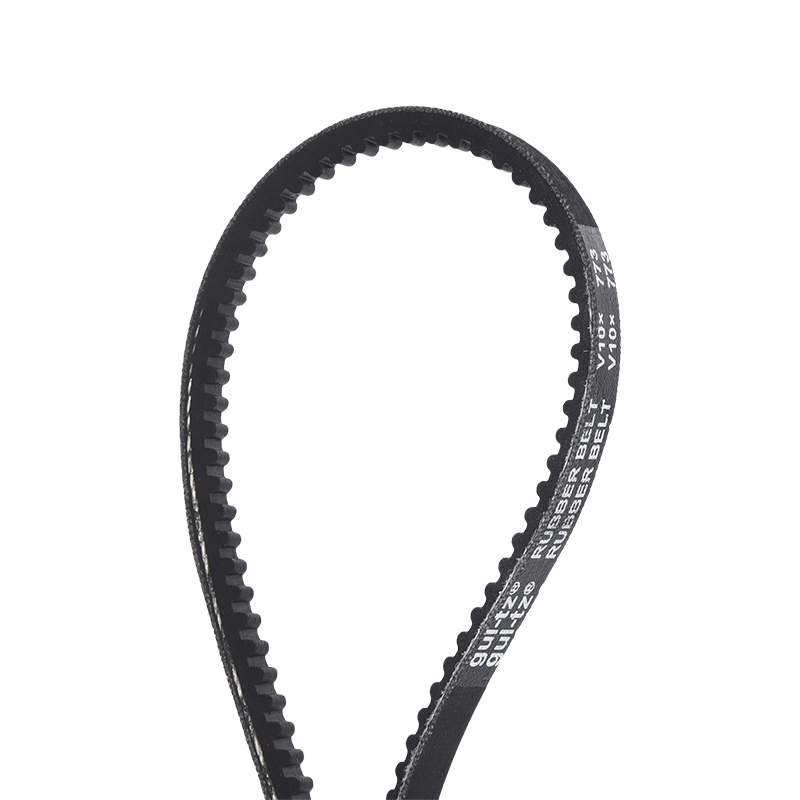

Raw-Edge V Belts

V-belt For Industry

Contact Now

Description

Type		Pich width(bp)	Top width(b)	Height(h)	Angle
Common v-belt	Y	5.3	6.0	4.0	40°
	Z	8.5	10.	6.0
	A	11	13.0	8.0
	B	14	17.0	11.0
	C	19	22.0	14.0
Narrow v-belt	SPZ	8	10.0	8.0	40°
	SPA	11	13.0	10.0
	SPB	14	17.0	14.0
	SPC	19	22.0	18.0

Length range of industry V belt

Type	Length range
Y	250MM-----900MM
Z	300MM-----2000MM
A	500MM-----2000MM
B	500MM-----2000MM
C	500MM-----2000MM
SPZ	300MM-----2000MM
SPA	500MM-----2000MM
SPB	500MM-----2000MM
SPC	500MM-----2000MM
