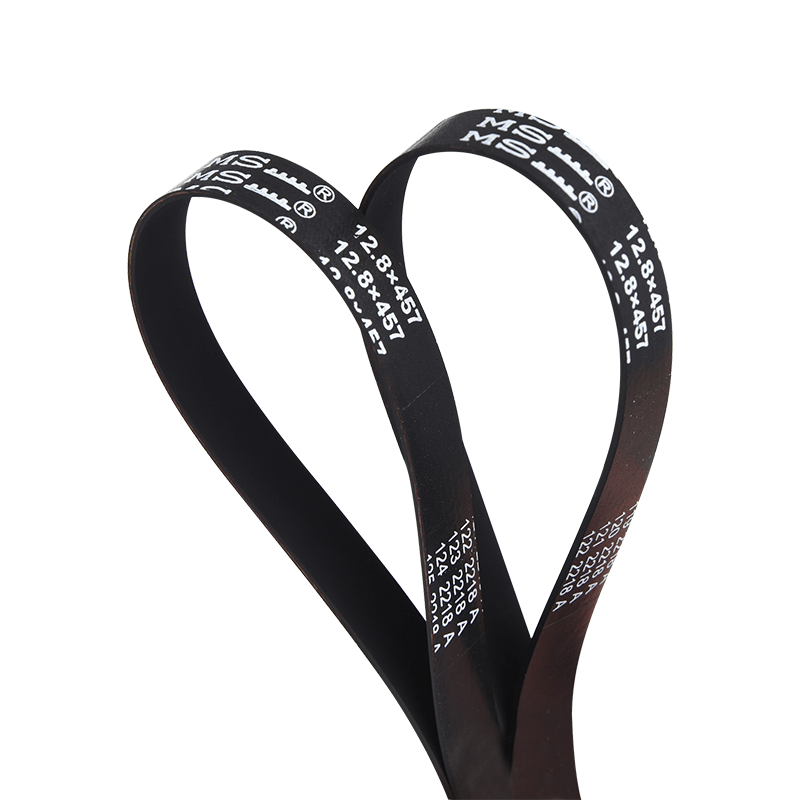

Ribbed Belt
V-Ribbed Belts

Ribbed Belt

Contact Now
  • Ribbed Belt
  • Ribbed Belt
  • Ribbed Belt
  • Ribbed Belt

Description

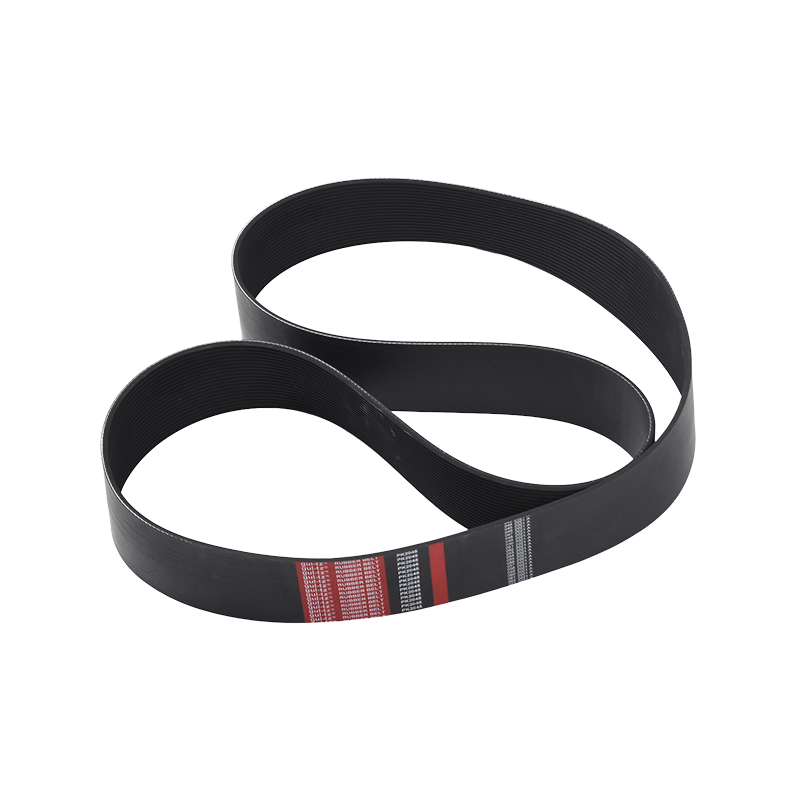

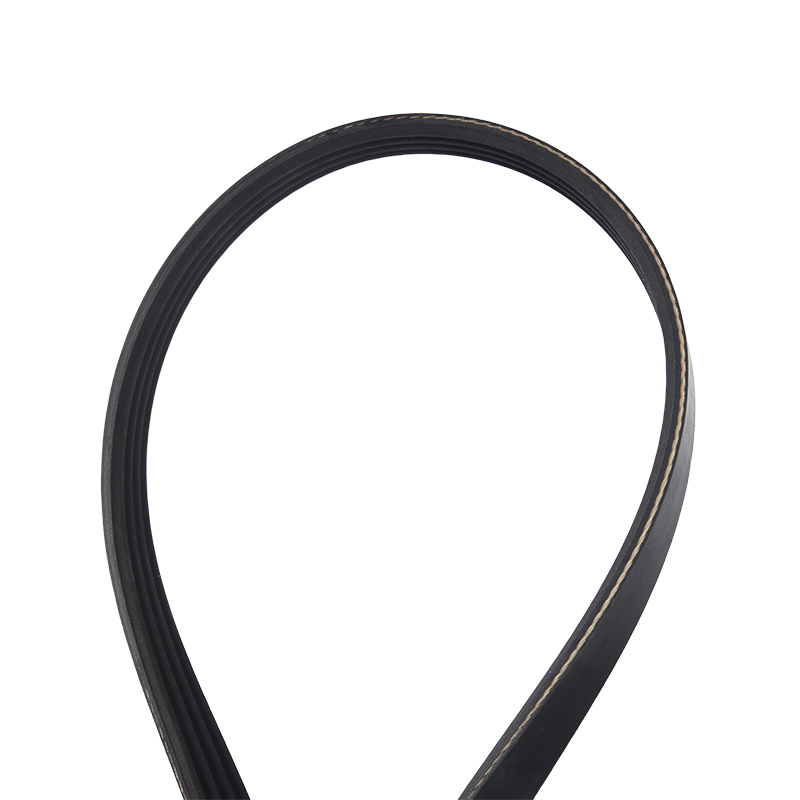

This V-Ribbed Belts combines the high transmission of V-belt and  the flexibility of  flat belt. It contributes to system compactness, multi-axis layout, and small pulley diameter.
1. The transmission power is large, and the transmission power of the ordinary V-belt is 30% higher than that of the ordinary V-belt when the space is the same.
2. The drive system has a compact structure and can reduce costs. Under the same transmission power, the space of the transmission device is 25% smaller than that of the ordinary V-belt.
3. The belt body is thin and flexible, suitable for transmission with small diameter of pulley, and also suitable for high-speed transmission.
4. Heat resistance, oil resistance, wear resistance and long service life.

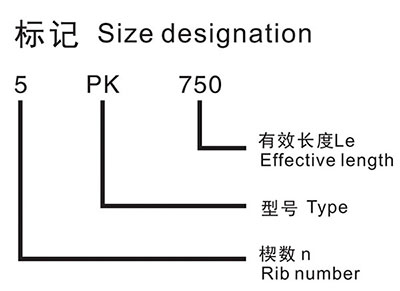

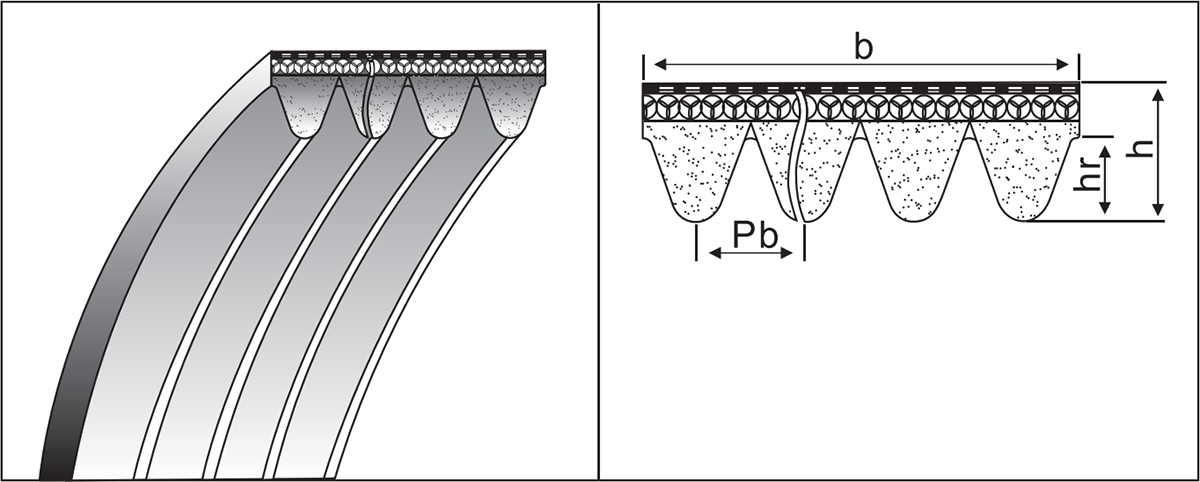

Automotive ribbed belt (unit: mm) ：

Type

Belt width

Pitch width

Height

Rib height

Effective length

Detail

PK

3.56xn

3.56

4.8(ref)

2.2(ref)

600-2500

Detail




Ribbed belt for industry (unit: mm) ：

Type

PH

PJ

PK

PL

PM

Rib pitch

1.6

2.34

3.56

4.7

9.4

Height,approx

2.5

4

4.8

10

17

Effective length

180-2500

Detail

Detail

Detail

Detail

Detail

Detail
