Double-Sided Timing Belts

Double-sided Timing Belt

Contact Now

Description

Double-sided Timing Belts has the same performance as a Timing Belts and SUPER TORQUE and has teeth on both sides of the belt. has the characteristics of light structure, slip-free meshing transmission, low noise, etc. It can be used for multi-axis transmission and double-sided drive.

1.The pitch & tooth type of double sided timing belt is same as synchronous belt.
2.There are two kinds of double sided timing belt:

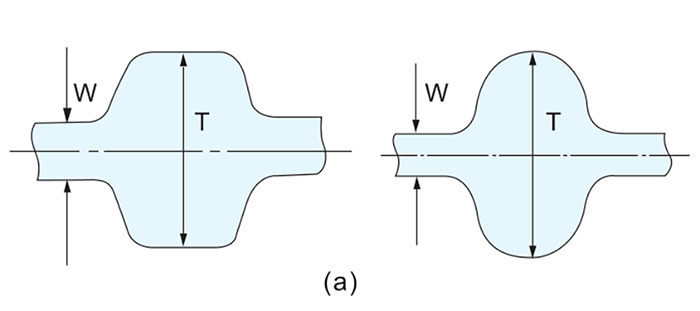

DA type: Arrangement symmetrical (see section a)

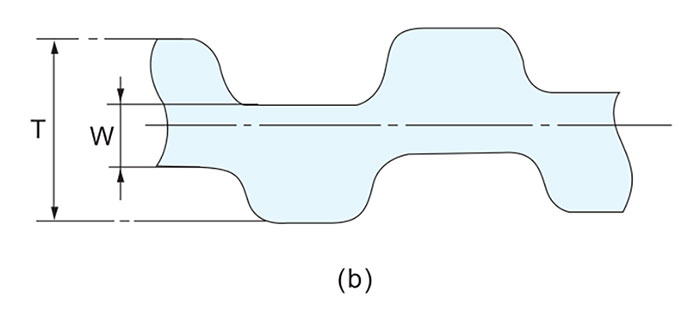

DB type: Arrangement overlapping (see section b)

Note: we can produce symmetrica (DA) & overlapping (DB) two kinds

double sided timing belt, for particular specification, we can also make according to clients's drawing or sample.

Specification of double sided Timing Belt

Size	Pitch length	Teeth Number
DS3M450-DS3M5598	450-5598	150-1866
DS5M450-DS5M5600	450-5600	90-1120
DS8M480-DS8M5600	480-5600	60-700
DS14M560-DS14M5600	560-5600	40-400
D3M450-D3M5598	450-5598	150-1866
D5M450-D5M5600	450-5600	90-1120
D8M480-D8M5600	480-5600	60-700
D14M560-D14M5600	560-5600	40-400
D178XL-D2204XL	452.12-5598.16	89-1102
D180L-D2201L	457.20-5591.18	48-587
D200H-D2200H	508-5588	40-440
D200XH-D2188XH	508-5556.25	23-250
DT5-450-DT5-5600	450-5600	90-1120
DT10-450-DT10-5600	450-5600	45-560
